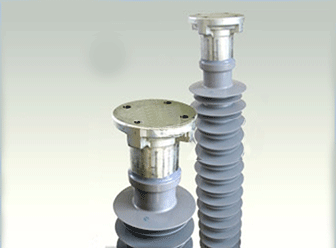

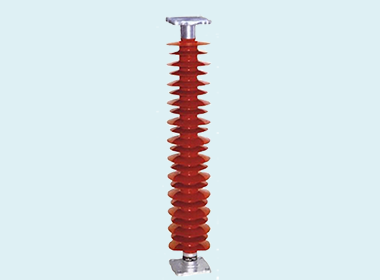

Composite Post Insulator


Product Description

The post composite insulator can be effectively used the narrow     corridor to drive down the power supply, which is suitable for the transformation of the city network technology and high voltage power line service.

The post composite insulator has features of good hydrophobicity, anti-ageing; anti-leakage trace and electric erode proof, tensile strength and bending strength, strong mechanical strength, shock resistance good quakeproof and brittle failure proof, light weight, easy to installation.



Product Properties


Mechanical load:4-20kN

Creepage distance: 245-25000mm

Standard: IEC62213 IEC61952  IEC60273

ANSI favorable waterproof performance

Good sealing performance, strong resistance to electric erosion




Production Process

Warming up under high temperature

Assembly of end fittings with reinforced fiber glass rod

Brush coupling agent on the rod

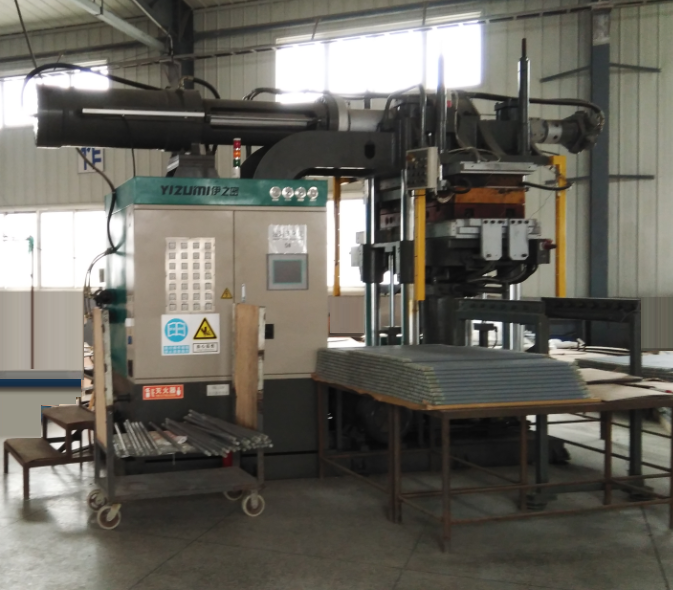

Compression molding or injection molding of vulcanization

Crimping of fittings to the rod

Surface trimming



Use in industry-specific solutions

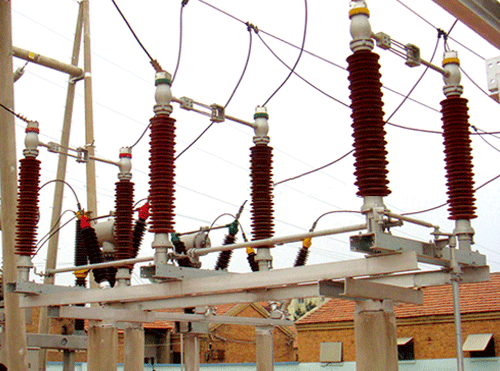

Device and plant construction,

e.g. switchgear, for busbars and disconnect switches

Platform support for capacitor banks
