HDPE Spacer
The HDPE cable spacer shall be made of track-resistant high-density polyethylene which suitable for using in the tropical climatic area and have passed electrical and mechanical test according to ANSI C29 standards.
Each cable spacer shall be furnished with cable ties for securing cables.
The snap ties shall be made of UV resistant polyurethane material which suitable for using in the tropical climatic area.

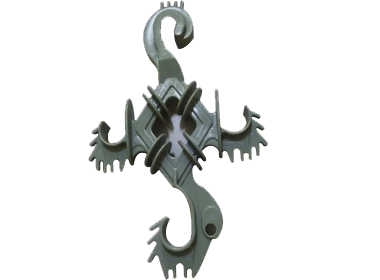

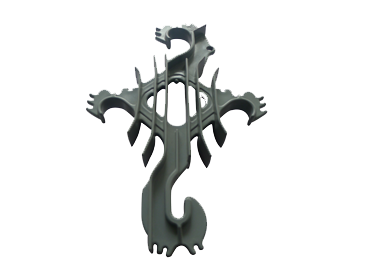

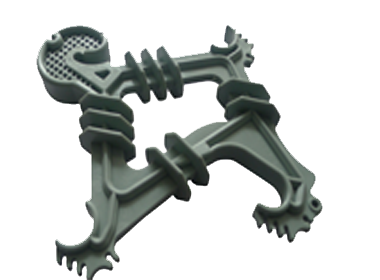

HDPE cable spacer 11~35kV
 |
|
 |
|
Technical Specifications
|
Cat No. |
15CS-01 |
15CS-02 |
22/33CS-01 |
35CS-02 |
||
|
Rated Voltage |
15kV |
15kV |
22-33kV |
35kV |
||
|
Material |
Polyethylene |
Polyethylene |
Polyethylene |
Polyethylene |
||
|
Electrical Characteristics |
Low Frequency Flashover Voltage-Dry-kV |
58kV |
58kV |
85kV |
85kV |
|
|
|
Low Frequency Flashover Voltage-Wet-kV |
45kV/min |
45kV/min |
70kV/min |
70kV/min |
|
|
|
Critical Dry Impulse Flashover-Positive-kV |
Positive |
80kV |
80kV |
125 |
135 |
|
|
|
Negative |
95kV |
95kV |
145 |
155 |
|
Mechanical Characteristics |
Ultimate mechanical strength |
4500N |
4500N |
8000N |
8000N |
|
|
Weight (kg) |
0.5 |
0.55 |
1.2 |
2.2 |
||
|
Qty(pcs)/Ctn |
11 |
11 |
6 |
6 |
||
HDPE cable spacer has the following Characteristics:
1. Excellent Track-Resistant
2. High Chemical Resistance
3. Unbreakable and Light Weight
4. Easiest Handling and Transportation
5. Low Initial Cost
6. Long Service Life
7. Durable Metal Treads
8. Water Repelling Surface
9. High resistance to traction, flexion and impact
10. May be fixed by elastomeric ring or pre shaped plastic lace

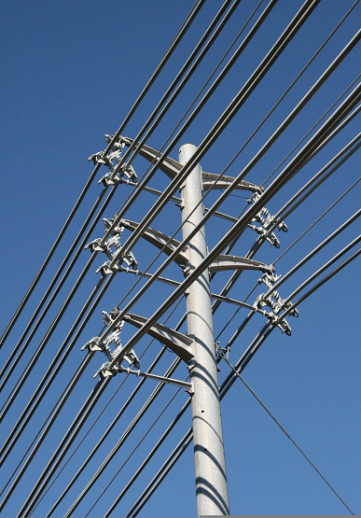

HDPE cable spacer on operation
 |
Our HDPE spacers are widely used in America, South American, North-east Asia etc. Standard: ANSI c29.5 and C29.6
|
