Porcelain Disc Insulator





Porcelain disc insulators are typically used in power transmission line. Porcelain is the most commonly used insulating material until now. Not only any voltage but also any contamination level can be done by changing number of insulators. TCI porcelain disc insulators have been one of best choice for world’s transmission projects.

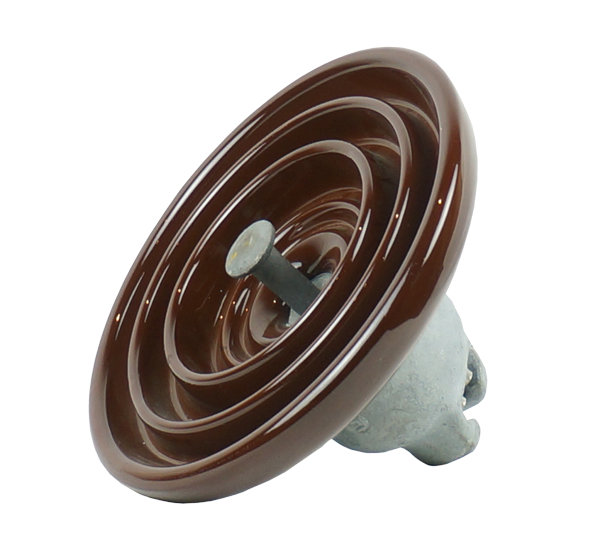

 Normal type

Type

Diameter

(mm)

Height

(mm)

Leakage

(mm)

SML

(kN)

U40B

190

140

200

40

U70B

255

146

295

70

U80B

255

146

295

80

U100B

255

146

295

100

U120B

255

146

320

120

U160B

255

146

400

160

U210B

280

170

380

210

U240B

280

170

405

240

U300B

320

195

370

300

U400B

360

205

525

400

U530B

380

240

600

530

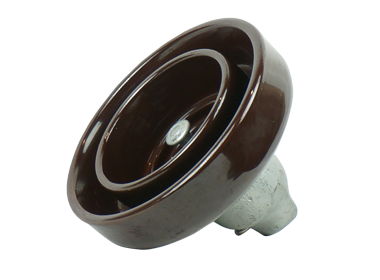

Fog type

Type

Diameter

(mm)

Height

(mm)

Leakage

(mm)

SML

(kN)

U70BP

255

146

432

70

U80BP

255

146

432

80

U100BP

255

146

432

100

U120BP

280

146

440

120

U160BP

320

170

525

160

U210BP

330

170

550

210

U240BP

320

170

550

240

U300BP

380

195

690

300

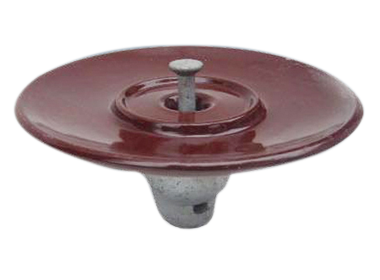

Aero dynamic type



Type

Diameter

(mm)

Height

(mm)

Leakage

(mm)

SML

(kN)

U70B

350

146

300

70

U80B

330

146

305

80

U100B

360

146

300

100

U120B

360

146

300

120

U160B

360

155

300

160

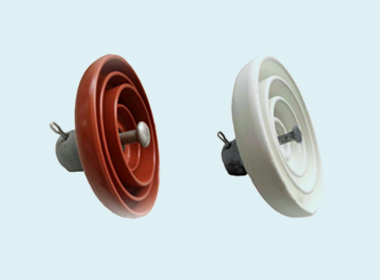

Porcelain disc insulator with RTV coating type

Pollution is becoming more and more serious in many areas. So disc insulators with RTV coating are increasingly popular. It has unique characteristics:

• Resistance to tracking and erosion

• Resistance to weathering & UV

• Resistance to chemical & physical degradation by water

• Volume resistivity

• Resistance to corona & ozone

• Application onto glass or porcelain surfaces, especially when done in the field





Note: ANSI 52-1, 52-2, 52-3, 52-4, 52-5,52-8 and 52-10 are available too.

Glaze color: grey, brown

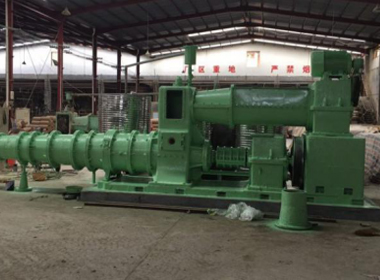

Production process

Material → Crush  → Mixture →Crinding →Screening →De-ironing →Slip Pool →Filtering →Kncading →Ageing →Vacuum Pugging → Electro-drying →Shaping →Glazing and Sanding →Firing →Assembling →Curing →Sample test  → Rountine test →Packing  →Storage → Departure

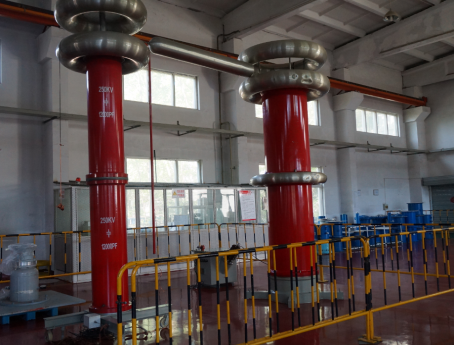

  Manufactured and test in accordance

  with IEC 60383 ANSI C29.1 C29.2

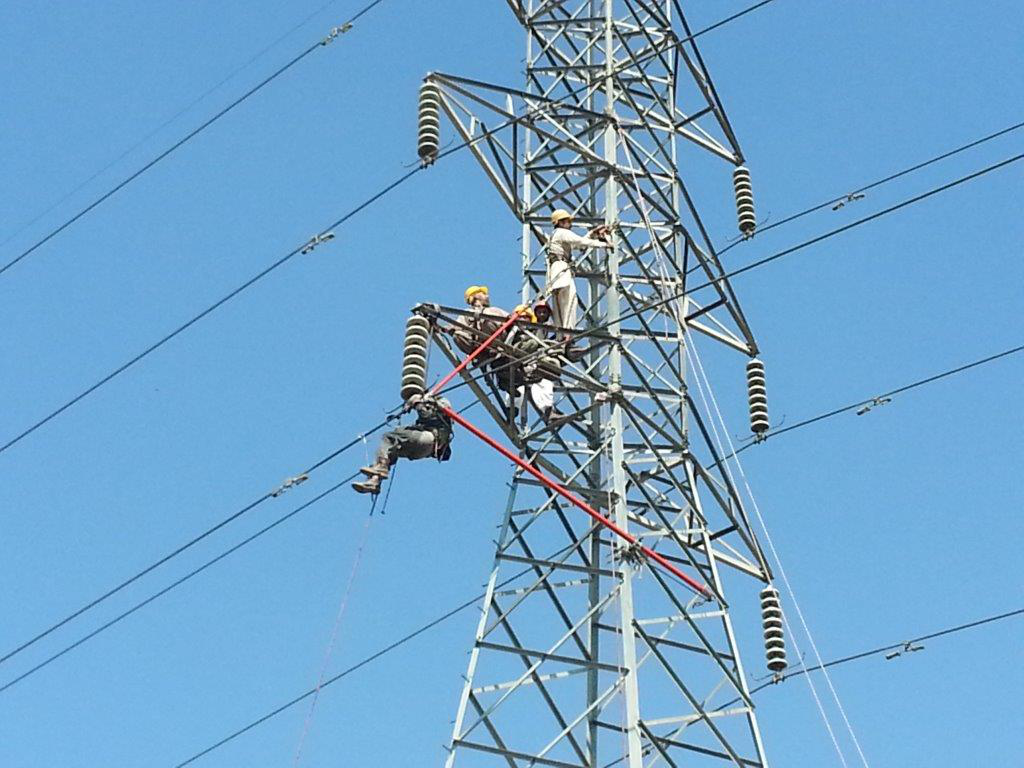

  Application

  ·Overhead transmission or distribution line

  ·Tension tower to assembly tension string to tensile

   conductor
  ·Suspension tower to assenbly suspension string to

   suspend conductor

  ·Substation
