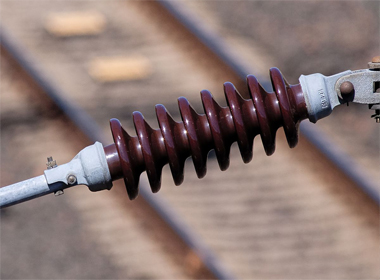

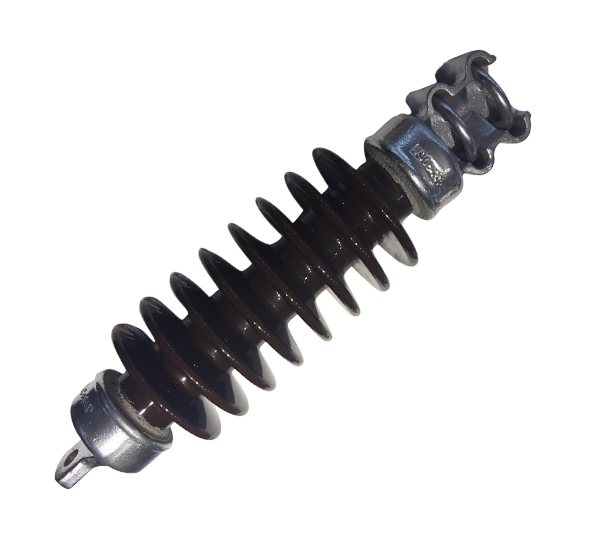

Porcelain Insulator For Electric Railway



 Product Description

 The products are suitable for electric-railway

 of complex operation conditions, can effectively

 prevent flash accidents and decrease the times

 of clear and maintenance, because of small

 volume, and when in the tunnel is clear products

 of glass insulator cannot instead of it.



 Product Properties

 Rate Voltage1-27.5kV

 Rate Mechanical load: 60kN

 Creepage distance: 1400mm

 Rod diameter: 101.2mm

 Standard: IEC61109

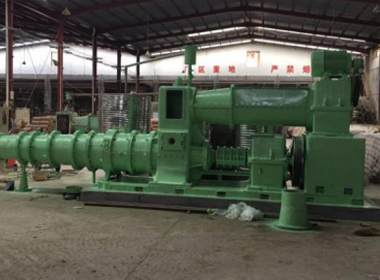

 Production Process

 Warming up under high temperature

 Assembly of end fittings with reinforced fiber glass rod

 Brush coupling agent on the rod

 Compression molding or injection molding of vulcanization

 Crimping of fittings to the rod

 Surface trimming

 Application

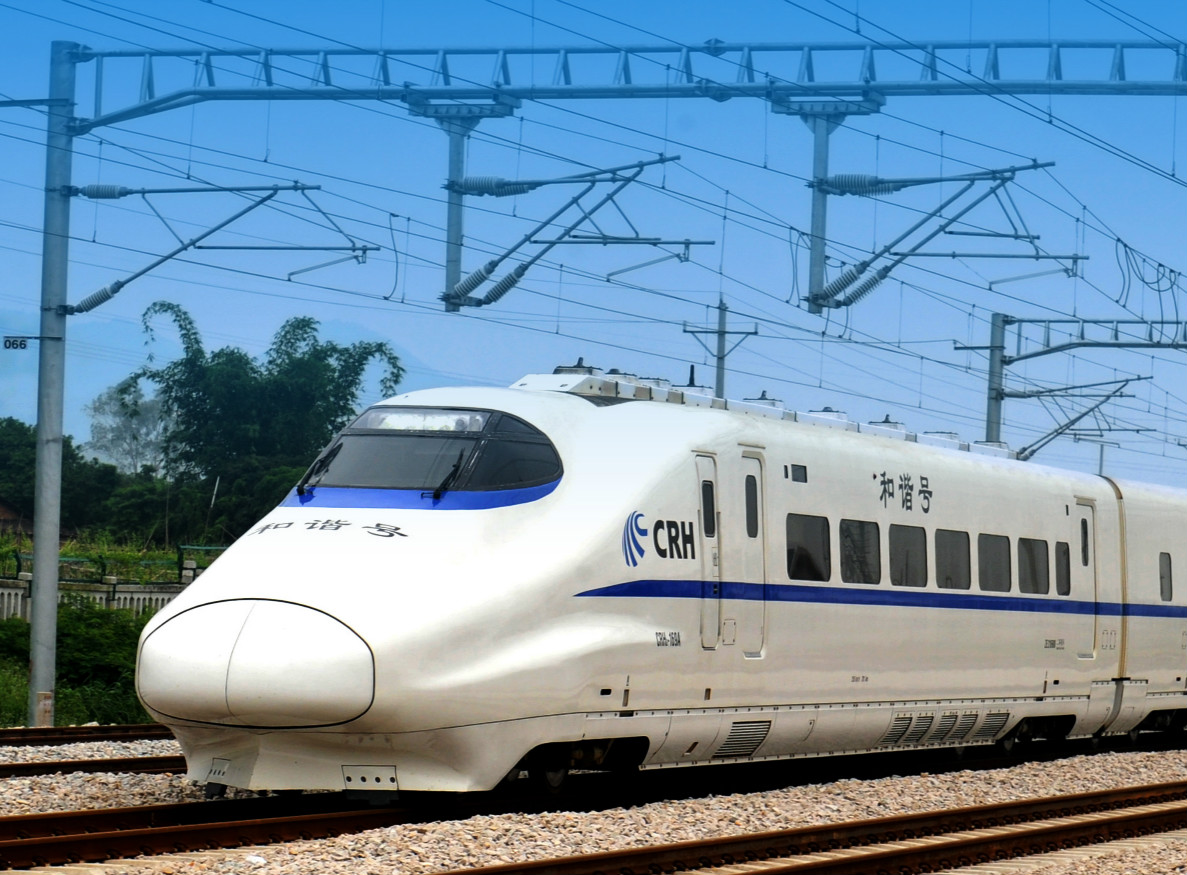

 Electric railway of complex operation conditions
 Use in industry-specific solutions
 Device and plant construction,
 e.g. switchgear, for busbars and disconnect switches
 Platform support for capacitor banks
